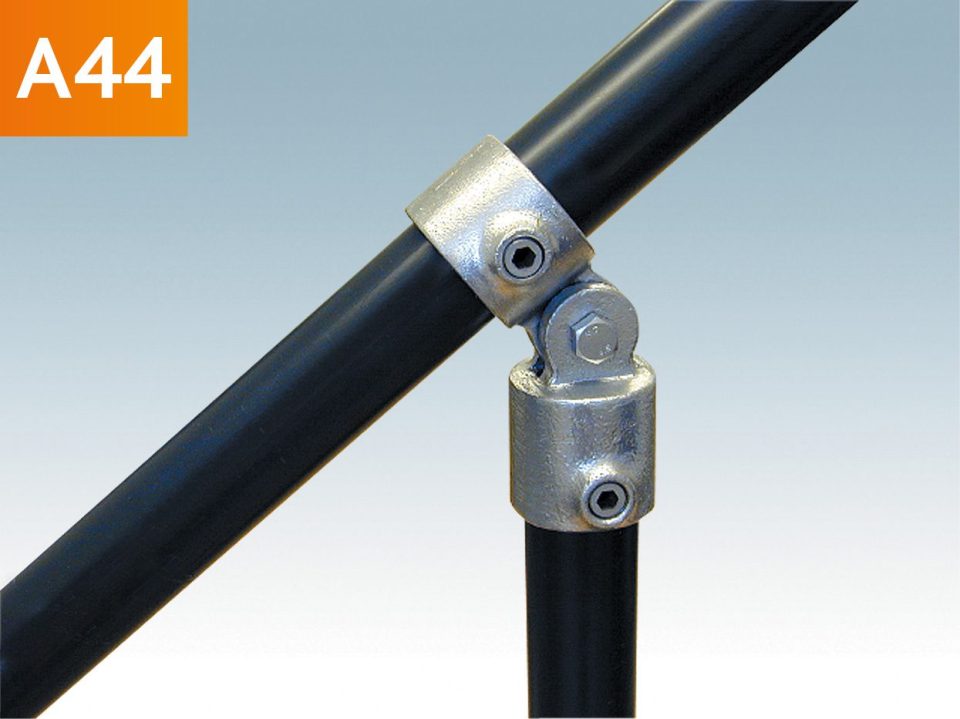

Key Clamp A44 Single Swivel Combination: a flexible variable angle connector. Used for an angled top rail connection to a post. Use if the angle required is not known. Also used as bracing struts for racking etc. Reducing combinations are available throughout the size range.
Key Clamp A44 Single Swivel Combination Sizes
| Code | Size | Tube outside diameter | Nominal bore |
|---|---|---|---|
| A44-5 | 5 | 26.9mm | 3/4″ |
| A44-6 | 6 | 33.7mm | 1″ |
| A44-7 | 7 | 42.4mm | 1 1/4″ |
| A44-8 | 8 | 48.3mm | 1 1/2″ |
| A44-9 | 9 | 60.3mm | 2″ |
Specification
- Material: malleable iron casting, manufactured in excess of BS 6681 (ISO 5922) and BS 2789 (ISO 1083).
- Finish: hot-dip galvanised to BS EN ISO 1461 as standard. Powder coating on request.
- Set screws: Dacromat coated and case hardened. When tightened to 29 ft lb (4.1 kgm), a slip load of 900kg can be obtained on each screw.
- Assembly: tightens onto the tube with a hexagon key. No welding, drilling or threading.
Dimensions are given as guidance only and are subject to manufacturing tolerances. Because these are galvanised castings, we do not recommend pre-drilling bolt holes before the fittings are on site.
