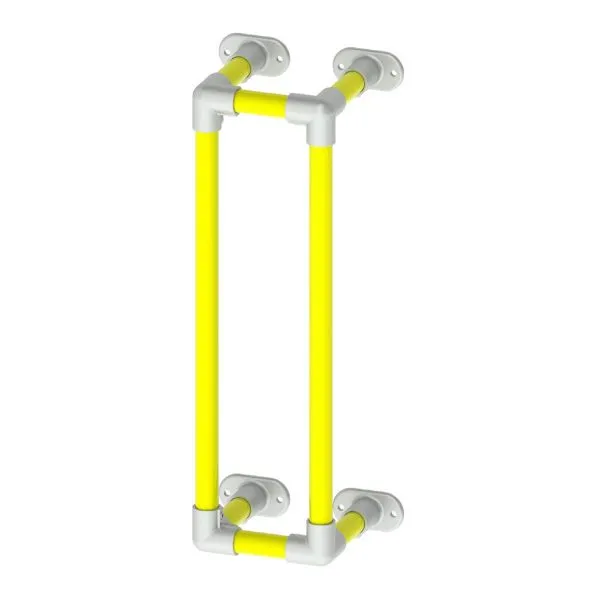

Pipe protection barrier, 1000mm tall: a hi-vis steel barrier that protects pipes against damage by passing vehicles. For factories, warehouses, public buildings and office blocks, including pipe runs beside vehicle routes and in plant rooms.

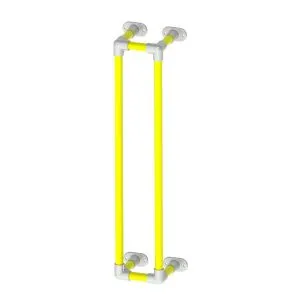

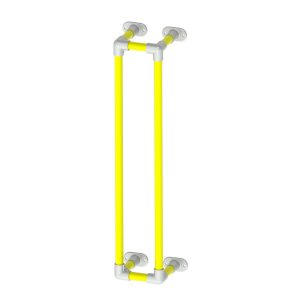

Also available 1500mm tall, with the same 300mm x 300mm footprint.
Pipe protection barrier Specification
| Height | 1000mm |
|---|---|
| Width | 300mm |
| Depth | 300mm |
| Tube | 48.3mm OD |
| Wall thickness | 3.2mm |
| Finish | Hot dip galvanised, powder coated RAL 1021 rape seed yellow |
| Fixing | Bolts down to the floor |
Dimensions are external.
Features
- Hi-vis. Powder coated RAL 1021 rape seed yellow, so drivers and pedestrians see it from a distance. That helps prevent the collision in the first place.
- Galvanised underneath. Hot dip galvanised steel resists corrosion inside and out.
- Heavy wall tube. Made from 48.3mm OD tube with a 3.2mm wall.
- Bolt-down. Fixes to the floor in front of the point it guards.
- Point protection. A single, self-contained guard placed exactly where the hits happen. It takes the impact instead of the pipework, which keeps the cost of repairs down.
- Inside or out. Suitable for indoor and outdoor use.
Often Used With
Service protection barriers for services and exposed pipework, vertical protection barriers for posts and other narrow uprights, and demarcation systems to mark out walkways.
Order and Quote
Add the protector to your quote and tell us how many pipe runs or points you need to protect. Stock orders go out for next-day delivery, and we reply to quotes within one hour in working hours. Not sure which protector or height you need? Send us a layout or photos and our free design service will pick the protector and height for each point.
See the full warehouse safety barriers range and our buyer guide.
