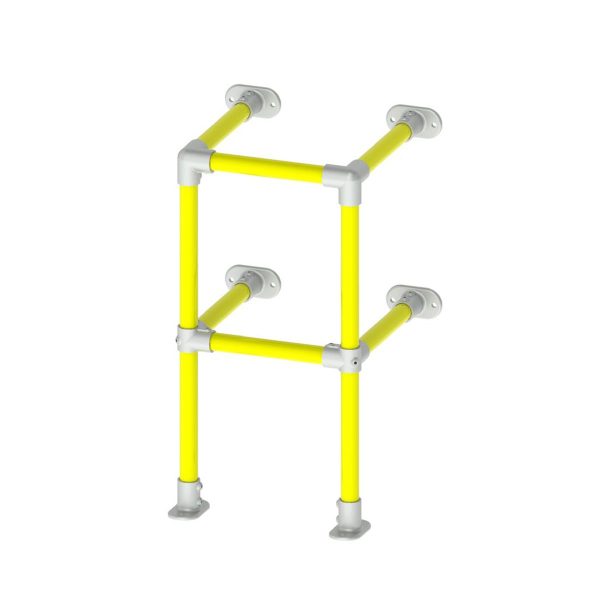

Structural protection barrier, 1000mm: a hi-vis steel barrier that sits around columns, posts, corners, steel girders and buildings, often called a column guard. It helps avoid damage from vehicles manoeuvring in tight spaces, inside a warehouse or outside.

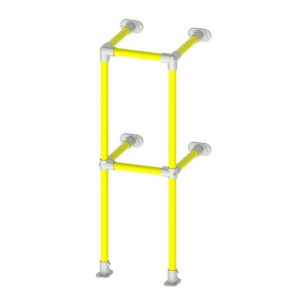

Also available 500mm and 1500mm high, all with a 500mm x 500mm footprint. Choose a height that covers the part of the column a vehicle or its load could reach.
Structural protection barrier Specification
| Height | 1000mm |
|---|---|
| Width | 500mm |
| Depth | 500mm |
| Tube | 48.3mm OD |
| Wall thickness | 3.2mm |
| Finish | Hot dip galvanised, powder coated RAL 1021 rape seed yellow |
| Fixing | Bolts down to the floor |
Dimensions are external.
Features
- Hi-vis. Powder coated RAL 1021 rape seed yellow, so drivers and pedestrians see it from a distance. That helps prevent the collision in the first place.
- Galvanised underneath. Hot dip galvanised steel resists corrosion inside and out.
- Heavy wall tube. Made from 48.3mm OD tube with a 3.2mm wall.
- Bolt-down. Fixes to the floor in front of the point it guards.
- Point protection. A single, self-contained guard placed exactly where the hits happen. It takes the impact instead of the column or building, which keeps the cost of repairs down.
- Inside or out. Suitable for indoor and outdoor use.
Often Used With
Warehouse corner protector for building corners, service protection barriers for exposed pipework, and Armco crash barriers where a whole wall or route needs protecting.
Order and Quote
Add the protector to your quote and tell us how many columns or points you need to protect. Stock orders go out for next-day delivery, and we reply to quotes within one hour in working hours. Not sure which protector or height you need? Send us a layout or photos and our free design service will pick the protector and height for each point.
See the full warehouse safety barriers range and our buyer guide.
